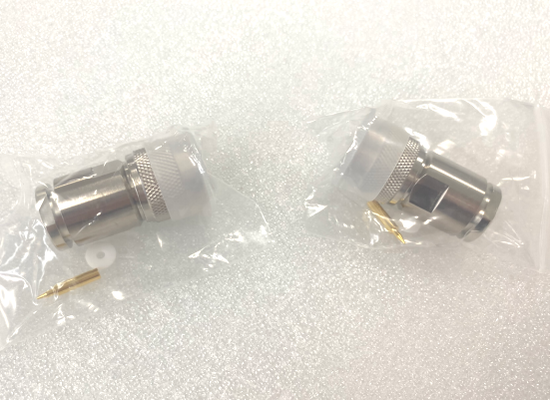

N Type Male Plug RF Coaxial Adapter Connector Suitable for Cable RG213
|
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Gedetailleerde productomschrijving
| Product Name: | N Type Cable Connector | Model: | N-J7 |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | 0.3MHz-11GHz |
| DWV: | 1000V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy, Gold Plated | Outer Conductor: | Copper Alloy, Nickel Plated |
| Insulators: | PTFE | Cable Type: | RG213, SFF-50-7-2, SFV-50-7-2 |
Product Description: The N series connector is developed and produced using threaded connections and air as the medium. Superior electrical performance, with a frequency of up to 11GHz. The N-type precision connector produced by Elite Electronic can reach 18GHz and can be matched with various types of RF cables. Due to its good seismic performance, high reliability, and wide frequency band, it is widely used in fields such as aviation, aerospace, radar, microwave communicatio
