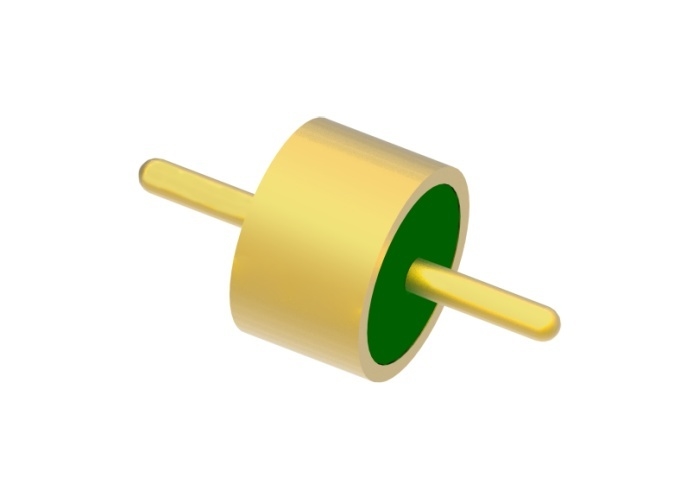

50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71

50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71
50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71 50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71

Grote Afbeelding :  50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71 Beste prijs

Productdetails:
Place of Origin: China
Merknaam: ELT
Certificering: ROHS ISO-9001-2015
Model Number: M2516-71
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 200 pcs
Prijs: negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000,000 pcs per year
Contact
Gedetailleerde productomschrijving
Plating: Gold Plated Certificate: ROHS ISO-9001-2015
Material: Kovar 4J29 Pin: Single pin
Glass: 7052,7070, DM308 Hermecity: <1.01325 X 10E-08 std.cc/s
Package: Glass to metal seals Shape: sintering glass to kovar metal seal
Merknaam: ELT(Elite) Size: can be customized according to your requirement
Markeren:

50Ohm RF Single Pin Header

,

M2516-71 Single Pin Header

 Single Pin 50Ohm RF Hermetic Glass To Metal Seal with Gold Wire Bonding Surface

Specification of M2516-71:

Product Name Hermetic Glass to Metal Seals
Impedance 50Ohm RF
Type 1 pin
Rows 1 row
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range DC-18GHz
VSWR 1.35
Withstand Voltage ≥500V

Hermecity

Leak Rate

< 1.01325 X 10-3 Pa*cm3/s
< 1X 10-9 mbar*l/s
< 1 x 10-9 ccHe/sec @ 1 atm
Insulation Resistance ≥2000MΩ
Operating temperature -65℃~+260℃



Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.



Advantages:
-Military Grade with 1.27um gold plated
-Strict tolerance control
-Standard and custom design for choice.
-High cost-effective products and services
-Large stocks for standard sizes
-Fast delivery for custom products

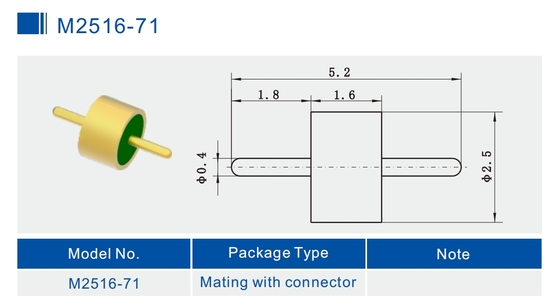

Detailed Image(mm) of M2516-71

50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71 0

Catalog-Glass-to-Metal Hermetic Seals.pdf



Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.



The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71 1

Product List:

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
 1-9 pins with 1-3 rows choice
Custom dimensions

Wide range


NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.

50Ohm RF Single Pin Header Hermetic Glass To Metal Seal M2516-71 2
