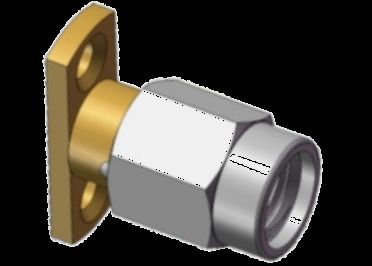

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz

Alle producten
De Schakelaar van SMA rf (190)
De Schakelaar van SMP rf (209)
De Schakelaar van SMPM rf (85)
1.0mm rf Schakelaar (23)
1.85mm rf Schakelaar (11)
2.4mm rf Schakelaar (39)
2.92mm rf Schakelaar (113)
3.5mm rf Schakelaar (13)
SSMA RF Connector (16)
Tussen Reeksrf Adapter (84)
RF-aansluitingen voor de luchtvaart (14)
Waaggeleidercomponenten voor de luchtvaart (6)
Rf-Kabelassemblage (64)
Rf-Ladingsbeëindiging (29)
Golfgeleider aan Coaxiale Adapter (33)
Glas aan de Schakelaars van de Metaalverbinding (112)
J30J reeksschakelaar (27)
Microgolf Roterende Verbindingen (6)
Geïntegreerde Schakelaar (22)
Coaxiale de Adapterschakelaar van rf (234)
Ik ben online Chatten Nu
Certificaat
CHINA Xi'an Elite Electronic Industry Co., Ltd. certificaten
CHINA Xi'an Elite Electronic Industry Co., Ltd. certificaten
Het product was precies zoals die en van hoogte wordt verwacht - kwaliteit. De dienst was uitstekend. Absoluut tot van opnieuw opdracht geven.

—— Gregory, de V.S.

Begreep mijn vereisten en zocht de juiste delen.

—— Ian, Nieuw Zeeland

Het is een groot genoegen geweest die u behandelen en u voor uw hulp en suggestie gedankt. Hoop dat er in de nabije toekomst meer copperation zal zijn.

—— Terence, Singapore

De SMP-schakelaars zijn hoog - de kwaliteit, het lektarief kan 1*10^-9 mbar*l/s. bereiken A great deal met zulk een economische prijs.

—— Jonh, Verenigde Staten

Professionele Verkoper

—— Abdu, Saudi-Arabië

Ik heb je hoogfrequente connectoren en ze zijn echt goed!

—— Jacky, Korea

We hebben kabels getest en ze werken allemaal zoals verwacht.

—— Josh, VK

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz
SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz
video play

Grote Afbeelding :  SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz Beste prijs

Productdetails:
Plaats van herkomst: Xi'an, China
Merknaam: ELT
Certificering: ISO9001, IS014001
Modelnummer: SSMA-JFD11
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: MOQ 50 pieces
Prijs: The price depend on the quantity
Verpakking Details: 1 stuks per plastic zak; 100 stuks per doos
Levertijd: 8-12 weken voor nieuwe productie
Betalingscondities: T/t, l/c, d/p
Levering vermogen: Als Vereisten
Contact
Gedetailleerde productomschrijving
Productnaam: Rechte SSMA mannelijke microstrip -connector Model: SSMA-JFD11
Frequentiebereik: 0.3 MHz-18 GHz Impedantie: 50Ω
Nominale spanning: 250V DWV: 750 V
Isolatieweerstand: ≥5000 mΩ Centrum dirigent: Koperen legering, verguld
Buitengeleider: Koperen legering, verguld Zet Methode op: 2 Hole Flange Mount
Isolatie: PTFE Monsters: Beschikbaar, op voorraad
Markeren:

SSMA male RF connector with flange mount

,

Mini SMA coaxial connector up to 18GHz

,

2 hole flange mount SSMA connector

Straight SSMA / Mini SMA Male RF Coaxial Connector 2 Hole Flange Mount Up to 18GHz
Product Specifications
Items Value
Product Name Straight SSMA Male Flange Mount Connector
Model
SSMA-JFD11
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Mount Method 2 Hole Flange Mount
Insulators PTFE
Product Overview

Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.



Superior Mechanical and Electrical Performance Engineered for excellence, SSMA connectors provide superior mechanical stability and electrical performance. They are built to withstand demanding conditions, ensuring consistent and reliable signal transmission in critical applications. High Reliability in Demanding Applications With a focus on reliability, SSMA connectors are suitable for use in challenging environments. Their high durability and consistent performance make them a trusted choice for applications where failure is not an option.



Threaded Standard (10-36UNF-2) These connectors feature a threaded standard (10-36UNF-2), ensuring secure connections and ease of installation. This threading provides a reliable mating interface, reducing the risk of connection failures. Characteristic Impedance of 50Ω SSMA connectors are designed with a characteristic impedance of 50Ω, optimizing them for high-frequency applications. This impedance ensures minimal signal loss and reflection, providing clear and accurate signal transmission.



Frequency Operation up to 30GHz Capable of operating at frequencies up to 30GHz, SSMA connectors are suitable for a wide range of high-frequency applications. This high-frequency operation allows for versatile use in advanced communication systems and RF applications.Variety of Mounting Structures SSMA connectors are available in various mounting structures, including right angle flange mount, straight flange mount, right angle through hole PCB solder, straight through hole PCB solder, and bulkhead screws connect. This variety ensures compatibility with different design requirements and installation preferences.



Feature Description
Size Compact (70% the size of traditional SMA connectors)
Frequency Bandwidth Wide frequency bandwidth (DC~18GHz)
Performance Superior mechanical and electrical performance
Reliability High reliability in demanding applications
Threaded Standard 10-36UNF-2
Impedance 50Ω
Frequency Operation Up to 18GHz
Mounting Structures Right angle flange, straight flange, right angle PCB solder, straight PCB solder, bulkhead screws connect
SSMA RF Coaxial Connectors Interface Dimensions
SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 0
SSMA / Mini SMA RF Coaxial Connector 2 Hole Flange Mount Dimensions
Outline dimensions for the SSMA-JHD11 (Unit: mm).

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 1

Other Model SSMA Male Plug 2 Hole Flange Mount RF Coaxial Connector:



SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 2



SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 3



SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 4

Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 5
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 6 Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
