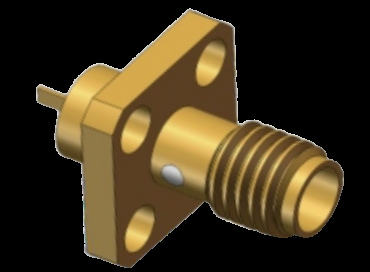

SSMA Female RF Coaxial Connector 4 Hole Flange Mount with Microstirp Flat 18GHz 50Ω
|
|
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Gedetailleerde productomschrijving
| Product naam: | SSMA Vrouwelijke Microstrip Connector | Model: | SSMA-KFD4 |
|---|---|---|---|
| Frequentiebereik: | 0.3 MHz-18 GHz | Impedantie: | 50Ω |
| Nominale spanning: | 250 V | DWV: | 750 V |
| Isolatieweerstand: | ≥5000MΩ | Centrum dirigent: | Koperen legering, verguld |
| Buitenste geleider: | Koperen legering, verguld | Zet Methode op: | 4-gats flensbevestiging |
| Isolatie: | PTFE | Monsters: | In voorraad, beschikbaar |
| Markeren: | 50Ω RF Coaxial Connector,18GHz RF Coaxial Connector,SSMA Female RF Coaxial Connector |
||
4 Hole Flange Mount SSMA / Mini SMA RF Coax Microstrip Connector Up to 18GHz with Metal Convex Surface
Product Specifications
| Items | Value |
|---|---|
| Product Name | SSMA Female Microstrip Connector |
| Model | SSMA-KFD4 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
4 Hole Flange Mount Dimensions
Outline dimensions for the SSMA-KFD4 model (Unit: mm). We offer similar models with copper alloy shells featuring different lengths of metal convex surface (3.2mm, 4mm, 3mm) and microstrip flat specifications (2.7mm max length, 0.88mm × 0.2mm size).
Note: The Microstrip flat parallel to any side of flange.
Other Model:
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
