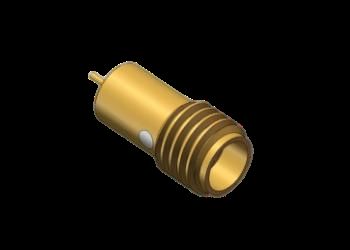

Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω

Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω
Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω

Grote Afbeelding :  Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω Beste prijs

Productdetails:
Plaats van herkomst: Xi'an, China
Merknaam: ELT
Certificering: RoHS
Modelnummer: SSMA (M) -KYD5
Document: Catalog SSMA-KYD Bulkhead F...25.pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: Op voorraad, MOQ 50 voor nieuwe productie
Prijs: Depending on the quantity
Verpakking Details: 1 stuks per plastic zak; 100 stuks per doos
Levertijd: 5-7 werkdagen voor voorraadhoeveelheid
Betalingscondities: T/T of LC
Levering vermogen: Als Vereisten
Gedetailleerde productomschrijving
Productnaam: SSMA vrouwelijke bulkhead connector Model: SSMA (M) -KYD5
Frequentiebereik: 0.3 MHz-18 GHz Impedantie: 50Ω
DWV: 750 V Isolatieweerstand: ≥5000 mΩ
Centrum dirigent: Koperen legering, verguld Buitengeleider: Koperen legering, verguld
Lekkage: ≦ 1.01325 x 10-3 pa.cm3/s Zet Methode op: Schot
Isolatie: Glas Monsters: op voorraad
Markeren:

hermetically sealed SSMA RF connector

,

50Ω copper alloy SMA jack

,

18GHz bulkhead coaxial connector

Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female/Socket RF Coaxial Connector
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
SSMA Bulk Connectors are high-frequency, low-loss, miniaturized panel-mounted RF interfaces. Their primary application is in RF systems with 50Ω impedance matching (such as communication devices, test instruments, and satellite terminals) to achieve reliable RF signal transmission across device panels. They are particularly suitable for scenarios requiring installation space and high-frequency signal transmission.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple structures: straight, right angle, cable type, bulkhead screw, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω 0
Hermetic Sealed Bulkhead SSMA Female Dimenstion:
Model No.: SSMA(M)-KYD5
Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω 1
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in RF coaxial connectors, adapters, cable assemibles for industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • High End Electronics applications
Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω 2
Packaging and Shipping
Each Bulkhead Jack SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω 3
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
